Driving Parameters Analysis System

Smart system for analyzing the driving skills of a person using IOT and Cloud Computing powered by Mediatek LinkIt One

AdvancedFull instructions provided1,808
Driving Parameters Analysis System

Things used in this project

Hardware components

LinkIt ONE
MediaTek Labs LinkIt ONE
×1
Grove Starter Kit for LinkIt ONE
Seeed Grove Starter Kit for LinkIt ONE
×1
Rotary Angle Sensor
×1

Software apps and online services

MediaTek Labs Cloud Sandbox

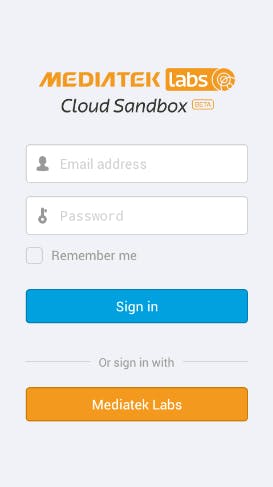

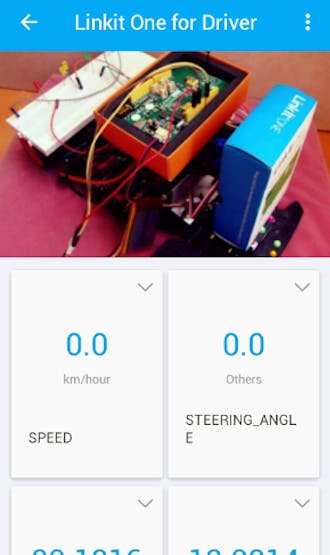

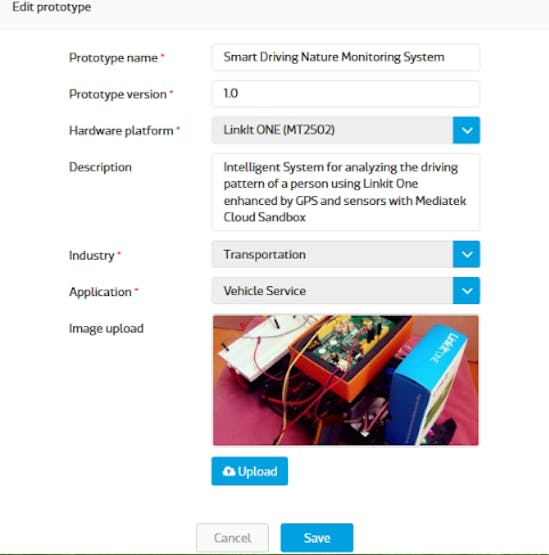

Online platform and more specifically, the smart phone application of Cloud Sandbox is used in this project endeavor
Arduino IDE
Arduino IDE

Story

Read more

Schematics

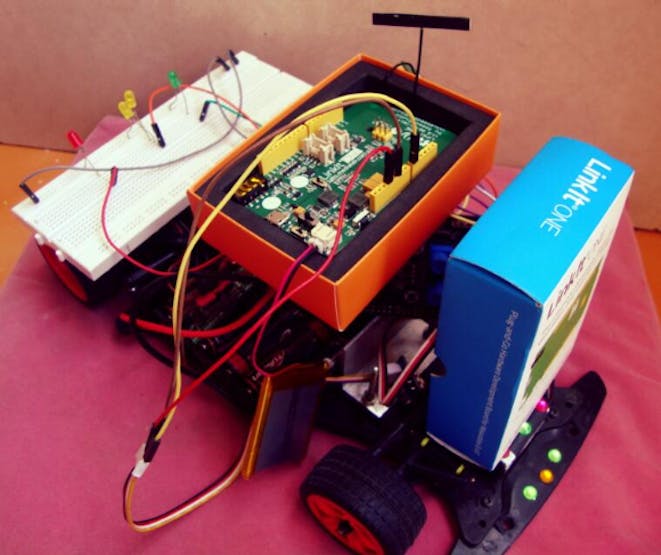

LinkIt One Basic Circuit for Implementation of System

Dsc01554

Code

Driving Parameters Analysis System

Arduino
// Driving Parameters Analysis System

//Header files required
//If not available, make sure to find them in Github repositories
#include <HttpClient.h>
#include <LTask.h>
#include <LWiFi.h>
#include <LWiFiClient.h>
#include <LDateTime.h>
#include <LGPRS.h>
#include <LGPRSClient.h>
#include <LGPRSServer.h>
#include <LGPS.h>

//Customize the data needed as per your specifications
#define WIFI_AP "your wifi name"
#define WIFI_PASSWORD "your wifi password"
#define DEVICEID "your device id"
#define DEVICEKEY "your device key"
#define SITE_URL "api.mediatek.com"

#define WIFI_AUTH LWIFI_WPA
#define per 50
#define per1 3

gpsSentenceInfoStruct info;
char buff[256];
double latitude;
double longitude;
double spd;

char buffer_latitude[8];
char buffer_longitude[8];
char buffer_spd[8];
char buffer_sensor[8];

static unsigned char getComma(unsigned char num,const char *str)
{
  unsigned char i,j = 0;
  int len=strlen(str);
  for(i = 0;i < len;i ++)
  {
     if(str[i] == ',')
      j++;
     if(j == num)
      return i + 1;
  }
  return 0;
}

static double getDoubleNumber(const char *s)
{
  char buf[10];
  unsigned char i;
  double rev;

  i=getComma(1, s);
  i = i - 1;
  strncpy(buf, s, i);
  buf[i] = 0;
  rev=atof(buf);
  return rev;
}

static double getIntNumber(const char *s)
{
  char buf[10];
  unsigned char i;
  double rev;

  i=getComma(1, s);
  i = i - 1;
  strncpy(buf, s, i);
  buf[i] = 0;
  rev=atoi(buf);
  return rev;
}

//Esssential part of code
//GPS data processing
//Determining quantities latitude,longitude and speed
void parseDPAS(const char* DPASstr)
{
    int tmp, hour, minute, second, num ;
  if(DPASstr[0] == '$')
  {
    tmp = getComma(1, DPASstr);
    hour     = (DPASstr[tmp + 0] - '0') * 10 + (DPASstr[tmp + 1] - '0');
    minute   = (DPASstr[tmp + 2] - '0') * 10 + (DPASstr[tmp + 3] - '0');
    second    = (DPASstr[tmp + 4] - '0') * 10 + (DPASstr[tmp + 5] - '0');

    sprintf(buff, "UTC timer %2d-%2d-%2d", hour, minute, second);

    tmp = getComma(2, DPASstr);
    latitude = getDoubleNumber(&DPASstr[tmp])/100.0;
    int latitude_int=floor(latitude);
    double latitude_decimal=(latitude-latitude_int)*100.0/60.0;
    latitude=latitude_int+latitude_decimal;
    tmp = getComma(4, DPASstr);
    longitude = getDoubleNumber(&DPASstr[tmp])/100.0;
    int longitude_int=floor(longitude);
    double longitude_decimal=(longitude-longitude_int)*100.0/60.0;
    longitude=longitude_int+longitude_decimal;

    sprintf(buff, "latitude = %10.4f, longitude = %10.4f", latitude, longitude);
    tmp = getComma(7, DPASstr);
    spd = getDoubleNumber(&DPASstr[tmp]);
    sprintf(buff, "speed = %F", spd);

  }
  else
  {
    Serial.println("Not get data");
  }
}


void recdat()
{
  LGPS.getData(&info);
  //Serial.println((char*)info.DPAS);
  parseDPAS((const char*)info.DPAS);
}

//AP connection
void AP_connect()
{
  Serial.print("Connecting to AP...");
  while (0 == LWiFi.connect(WIFI_AP, LWiFiLoginInfo(WIFI_AUTH, WIFI_PASSWORD)))
  {
    Serial.print(".");
    delay(500);
  }
  Serial.println("Success!");

  Serial.print("Connecting site...");

  while (!drivepar.connect(SITE_URL, 80))
  {
    Serial.print(".");
    delay(500);
  }
  Serial.println("Success!");
  delay(100);
}


void getconnectInfo()
{
    drivepar.print("GET /mcs/v2/devices/");
  drivepar.print(DEVICEID);
  drivepar.println("/connections.csv HTTP/1.1");
  drivepar.print("Host: ");
  drivepar.println(SITE_URL);
  drivepar.print("deviceKey: ");
  drivepar.println(DEVICEKEY);
  drivepar.println("Connection: close");
  drivepar.println();

  delay(500);

  int errorcount = 0;
  Serial.print("waiting for HTTP response...");
  while (!drivepar.available())
  {
    Serial.print(".");
    errorcount += 1;
    delay(150);
  }
  Serial.println();
  int err = http.skipResponseHeaders();

  int bodyLen = http.contentLength();
  char c;
  int ipcount = 0;
  int count = 0;
  int separater = 0;
  while (drivepar)
  {
    int v = (int)drivepar.read();
    if (v != -1)
    {
      c = v;
      //Serial.print(c);
      connection_info[ipcount]=c;
      if(c==',')
      separater=ipcount;
      ipcount++;
    }
    else
    {
      Serial.println("no more content, disconnect");
      drivepar.stop();

    }

  }


  int i;
  for(i=0;i<separater;i++)
  {  ip[i]=connection_info[i];
  }
  int j=0;
  separater++;

  for(i=separater;i<21 && j<5 && i < ipcount;i++)
  {  port[j]=connection_info[i];
     j++;
  }


  portnum = atoi (port);

}

void connectTCP()
{

  c.stop();
  Serial.print("Connecting to TCP...");
  while (0 == c.connect(ip, portnum))
  {
    Serial.println("Re-Connecting to TCP");
    delay(1000);
  }
  c.println(tcpdata);
  c.println();
  Serial.println("Success!");
}

void heartBeat()
{
  Serial.println("send TCP heartBeat");
  c.println(tcpdata);
  c.println();

}



void uploadstatus()
{
  while (!drivepar.connect(SITE_URL, 80))
  {
    Serial.print(".");
    delay(500);
  }

  delay(100);

  if(digitalRead(13)==1)
    upload_led = "ENGINE_MODE_DISPLAY,,1";
  else
    upload_led = "ENGINE_MODE_DISPLAY,,0";

  int thislength = upload_led.length();
  HttpClient http(drivepar);
  drivepar.print("POST /mcs/v2/devices/");
  drivepar.print(DEVICEID);
  drivepar.println("/datapoints.csv HTTP/1.1");
  drivepar.print("Host: ");
  drivepar.println(SITE_URL);
  drivepar.print("deviceKey: ");
  drivepar.println(DEVICEKEY);
  drivepar.print("Content-Length: ");
  drivepar.println(thislength);
  drivepar.println("Content-Type: text/csv");
  drivepar.println("Connection: close");
  drivepar.println();
  drivepar.println(upload_led);
  delay(500);

  int errorcount = 0;
  while (!drivepar.available())
  {
    Serial.print(".");
    delay(100);
  }
  int err = http.skipResponseHeaders();
  int bodyLen = http.contentLength();

  while (drivepar)
  {
    int v = drivepar.read();
    if (v != -1)
    {
      Serial.print(char(v));
    }
    else
    {
      Serial.println("no more content, disconnect");
      drivepar.stop();
    }

  }
  Serial.println();
}


//Data streaming to Mediatek Cloud Sandbox
void transdat(){

  while (!drivepar.connect(SITE_URL, 80))
  {
    Serial.print(".");
    delay(500);
  }

  delay(100);


float sensor = analogRead(A0);
  Serial.printf("latitude=%.4f\tlongitude=%.4f\tspd=%.4f\tsensor=%.4f\n",latitude,longitude,spd,sensor);

  if(latitude>-90 && latitude<=90 && longitude>=0 && longitude<360)
  {
    sprintf(buffer_latitude, "%.4f", latitude);
    sprintf(buffer_longitude, "%.4f", longitude);
    sprintf(buffer_spd, "%.4f", spd);
    sprintf(buffer_sensor, "%.4f", sensor);

  }
  String upload_GPS = "GPS,,"+String(buffer_latitude)+","+String(buffer_longitude)+","+String(buffer_spd)+","+String(buffer_sensor)+","+"0"+"\n"+"LATITUDE,,"+buffer_latitude+"\n"+"LONGITUDE,,"+buffer_longitude+"\n"+"SPEED,,"+buffer_spd+"\n"+"STEERING_ANGLE,,"+buffer_sensor;
  int GPS_length = upload_GPS.length();
  HttpClient http(drivepar);

  drivepar.print("POST /mcs/v2/devices/");
  drivepar.print(DEVICEID);
  drivepar.println("/datapoints.csv HTTP/1.1");
  drivepar.print("Host: ");
  drivepar.println(SITE_URL);
  drivepar.print("deviceKey: ");
  drivepar.println(DEVICEKEY);
  drivepar.print("Content-Length: ");
  drivepar.println(GPS_length);
  drivepar.println("Content-Type: text/csv");
  drivepar.println("Connection: close");
  drivepar.println();
  drivepar.println(upload_GPS);
  delay(500);

  int errorcount = 0;

  while (!drivepar.available())
  {
    Serial.print(".");
    delay(100);
  }
  int err = http.skipResponseHeaders();
  int bodyLen = http.contentLength();

  while (drivepar)
  {
    int v = drivepar.read();
    if (v != -1)
    {
      Serial.print(char(v));
    }
    else
    {
      Serial.println("no more content, disconnect");
      drivepar.stop();
    }

  }
  Serial.println();
}
LGPRSClient c;
unsigned int rtc;
unsigned int lrtc;
unsigned int rtc1;
unsigned int lrtc1;
char port[4]={0};
char connection_info[21]={0};
char ip[15]={0};
int portnum;
int val = 0;
String tcpdata = String(DEVICEID) + "," + String(DEVICEKEY) + ",0";
String tcpcmd_led_on = "ENGINE_MODE_CONTROL,1";
String tcpcmd_led_off = "ENGINE_MODE_CONTROL,0";
String upload_led;

LGPRSClient drivepar;
HttpClient http(drivepar);


//Setup
void setup()
{
  pinMode(13, OUTPUT);

  LTask.begin();
  LWiFi.begin();

  Serial.begin(115200);
  LGPS.powerOn();
  AP_connect();
  getconnectInfo();
  connectTCP();

  Serial.println("...");
}


//Loop
void loop()
{
  String tcpcmd="";

  while (c.available())
   {
      int v = c.read();
      if (v != -1)
      {
        Serial.print((char)v);
        tcpcmd += (char)v;
        if (tcpcmd.substring(40).equals(tcpcmd_led_on)){
          digitalWrite(13, HIGH);
          Serial.print("Switch LED ON ");
          tcpcmd="";
        }
        else if(tcpcmd.substring(40).equals(tcpcmd_led_off)){
          digitalWrite(13, LOW);
          Serial.print("Switch LED OFF");
          tcpcmd="";
        }
      }
   }

  LDateTime.getRtc(&rtc);
  if ((rtc - lrtc) >= per) {
    heartBeat();
    lrtc = rtc;
  }

  LDateTime.getRtc(&rtc1);
  if ((rtc1 - lrtc1) >= per1) {

    uploadstatus();
    recdat();
    transdat();
    lrtc1 = rtc1;
  }

}
