Things used in this project

Hardware components:
102110017%206
MediaTek Labs LinkIt Smart 7688 Duo
×1
Fairchild semiconductor pn2222abu. image
General Purpose Transistor NPN
×1
11026 02
Jumper wires (generic)
Male to female Jumper wire
×1
12002 04
Breadboard (generic)
×1
IR receiver (generic)
To decode IR protocol
×1
IR transmitter (generic)
To transmit IR protocol
×1
Software apps and online services:
Node JS
Ide web
Arduino IDE
Hand tools and fabrication machines:
09507 01
Soldering iron (generic)

Code

Smart IR BlasterJavaScript
var app = require('express')();
var http = require('http').Server(app);
var io = require('socket.io')(http);

var serialPort = require('serialport'); // include the serialport library
  var SerialPort = serialPort.SerialPort;
    var portName = '/dev/ttyS0';
	serialPort = new SerialPort(portName, {
	    baudrate: 57600,
	    // defaults for Arduino serial communication
	     dataBits: 8,
	     parity: 'none',
	     stopBits: 1,
	     flowControl: false
       });
  app.get('/', function(req, res){
    res.sendfile('index_with_numeric_buttons.html');
  });


  io.on('connection', function(socket){

    console.log('new client connected');
    socket.on('TVPwr', function(data){
          console.log(data);
      serialPort.write('TVPwr');
        });
    socket.on('TVchUP', function(data){
          console.log(data);
      serialPort.write('TVchUP');
        });
    socket.on('TVchDW', function(data){
              console.log(data);
             serialPort.write('TVchDW');
    });
 socket.on('TVvUP', function(data){
                  console.log(data);
                  serialPort.write('TVvUP');
      });
socket.on('TVvDW', function(data){
                  console.log(data);
                  serialPort.write('TVvDW');
                });

socket.on('STBPwr', function(data){
                console.log(data);
                serialPort.write('STBPwr');
                  });
socket.on('STBchUP', function(data){
          console.log(data);
          serialPort.write('STBchUP');
                    });
socket.on('STBchDW', function(data){
          console.log(data);
          serialPort.write('STBchDW');
              });
socket.on('STBvUP', function(data){
          console.log(data);
          serialPort.write('STBvUP');
              });
socket.on('STBvDW', function(data){
          console.log(data);
          serialPort.write('STBvDW');
                   });

  socket.on('HTPwr', function(data){
               console.log(data);
                  serialPort.write('HTPwr');
                      });
  socket.on('HTvUP', function(data){
                console.log(data);
                   serialPort.write('HTvUP');
                  });
   socket.on('HTvDW', function(data){
                console.log(data);
                    serialPort.write('HTvDW');
                });
  socket.on('1', function(data){
                console.log(data);
                  serialPort.write('1');
      });
  socket.on('2', function(data){
                console.log(data);
                  serialPort.write('2');
          });
socket.on('3', function(data){
                  console.log(data);
                  serialPort.write('3');
                  });

  socket.on('4', function(data){
                console.log(data);
                  serialPort.write('4');
      });
  socket.on('5', function(data){
                console.log(data);
                  serialPort.write('5');
          });
  socket.on('6', function(data){
                console.log(data);
                serialPort.write('6');
                  });

  socket.on('7', function(data){
                console.log(data);
                serialPort.write('7');
      });
  socket.on('8', function(data){
                console.log(data);
                serialPort.write('8');
          });
  socket.on('9', function(data){
                console.log(data);
                serialPort.write('9');
                  });
socket.on('0', function(data){
                console.log(data);
            serialPort.write('0');
                  });

  });

  http.listen(3000, function(){
    console.log('listening on *:3000');
  });

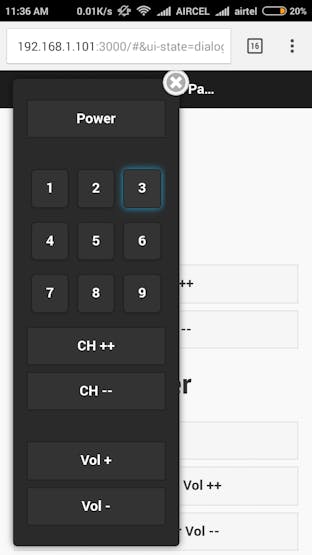

Index page for webUIHTML
<!DOCTYPE html>
<html>
<head>
  <!-- Include meta tag to ensure proper rendering and touch zooming -->
  <meta name="viewport" content="width=device-width, initial-scale=1" >
  <script src="https://ajax.googleapis.com/ajax/libs/jquery/3.1.1/jquery.min.js"></script>
  <!-- Include jQuery Mobile stylesheets -->
  <link rel="stylesheet" href="https://code.jquery.com/mobile/1.4.5/jquery.mobile-1.4.5.min.css">

<!-- Include the jQuery library -->
  <script src="https://code.jquery.com/jquery-1.11.3.min.js"></script>

<!-- Include the jQuery Mobile library -->
  <script src="https://code.jquery.com/mobile/1.4.5/jquery.mobile-1.4.5.min.js"></script>

  <script src="socket.io/socket.io.js"></script>
  <title> Testing</title>
<style>
  .ui-bar-c{
    text-align: center;
    padding: 5px 4px;

  }
</style>

</head>
<body>
<div data-role="page" id="pageone">
  <div data-role="header" data-theme="b">
  <h1>Smart Control Panel</h1>
  </div>

  <div data-role="main" class="ui-content">
<a href="#myPopup" data-rel="popup" class="ui-btn ui-btn-b ui-btn-inline ui-corner-all">Set Top Box</a>

<div class="ui-grid-b ui-responsive">

<div data-role="popup" id="myPopup" class="ui-content" data-theme="b">
      <a href="#" data-rel="back" class="ui-btn ui-btn-a ui-corner-all ui-shadow ui-btn ui-icon-delete ui-btn-icon-notext ui-btn-right">Close</a>
     <div>
       <button class="ui-btn" type="button" id="STBPwr">Power</button>
     </div>

     <br>
     <div class="ui-grid-b ">
     <div class="ui-block-a"><a href="#" class="ui-btn ui-shadow ui-corner-all" id="1" > 1 </a></div>
     <div class="ui-block-b"><a href="#" class="ui-btn ui-shadow ui-corner-all" id="2" > 2 </a></div>
     <div class="ui-block-c"><a href="#" class="ui-btn ui-shadow ui-corner-all" id="3" > 3 </a></div>
     <div class="ui-block-a"><a href="#" class="ui-btn ui-shadow ui-corner-all" id="4" > 4 </a></div>
     <div class="ui-block-b"><a href="#" class="ui-btn ui-shadow ui-corner-all" id="5" > 5 </a></div>
     <div class="ui-block-c"><a href="#" class="ui-btn ui-shadow ui-corner-all" id="6" > 6 </a></div>
     <div class="ui-block-a"><a href="#" class="ui-btn ui-shadow ui-corner-all" id="7" > 7 </a></div>
     <div class="ui-block-b"><a href="#" class="ui-btn ui-shadow ui-corner-all" id="8"> 8 </a></div>
     <div class="ui-block-c"><a href="#" class="ui-btn ui-shadow ui-corner-all" id="9" > 9 </a></div>
     <div class="ui-block-c"><a href="#" class="ui-btn ui-shadow ui-corner-all" id="0" > 0 </a></div>
 </div> <div>
           <button class="ui-btn" type="button" id="STBchUP">CH ++ </button>
           <button class="ui-btn" type="button" id="STBchDW">CH -- </button>
         </div>
         <br>
         <div>
           <button class="ui-btn" type="button" id="STBvUP">Vol +</button>
           <button class="ui-btn" type="button" id="STBvDW">Vol -</button>
         </div>
        </div>

    </div>
    <br>
    <div>
      <H1>TV</H1>
      <div>
        <button class="ui-btn" type="button" id="TVPwr">Power</button>
      </div>

      <div>
           <button class="ui-btn" type="button" id="TVchUP">CH ++ </button>
           <button class="ui-btn" type="button" id="TVchDW">CH -- </button>
         </div>
         <br>
         <div>
           <button class="ui-btn" type="button" id="TVvUP">Vol +</button>
           <button class="ui-btn" type="button" id="TVvDW">Vol -</button>
         </div>

    </div>
  <br>
    <div>
      <H1>AC</H1>
      <button class="ui-btn" type="button" id="ACtempDec">AC Temp ++ </button>
      <button class="ui-btn" type="button" id="ACtempInc">AC Temp --</button>

    </div>

    <br>

 <div>
      <H1>Home Theater</H1>
 <div>
       <button class="ui-btn" type="button" id="HTPwr">Power</button>
     </div>
      <button class="ui-btn" type="button" id="HTvUP">Home Theater Vol ++ </button>
      <button class="ui-btn" type="button" id="HTvDW">Home Theater Vol --</button>
    </div>
  </div>

</div>

<script>
  var socket = io();
  $('#STBPwr').on("click", function() {
            socket.emit('STBPwr', 'Set Top Box power button is clicked ' );
                });

$('#STBchUP').on("click", function() {
              socket.emit('STBchUP', 'Forward channel is clicked ' );
              });
$('#STBchDW').on("click", function() {
             socket.emit('STBchDW', 'Backward channel is clicked ' );
             });
$('#STBvUP').on("click", function() {
            socket.emit('STBvUP', ' Volume Up ' );
              });

$('#STBvDW').on("click", function() {
             socket.emit('STBvDW', ' Volume Down ' );
                        });
$('#TVPwr').on("click", function() {
               socket.emit('TVPwr', ' TV power button is clicked ' );
                      });
$('#TVchUP').on("click", function() {
              socket.emit('TVchUP', 'Forward channel is clicked ' );
              });
 $('#TVchDW').on("click", function() {
               socket.emit('TVchDW', 'Backward channel is clicked ' );
               });
$('#TVvUP').on("click", function() {
                socket.emit('TVvUP', ' Volume Up ' );
              });

$('#TVvDW').on("click", function() {
                 socket.emit('TVvDW', ' Volume Down ' );

                });

$('#HTPwr').on("click", function() {
              socket.emit('HTPwr', ' Home Theater Power button ' );
             });

$('#HTvUP').on("click", function() {
              socket.emit('HTvUP', ' Home Theater Volume Up ' );
             });
$('#HTvDW').on("click", function() {
              socket.emit('HTvDW', ' Home Theater Volume Down ' );
             });
 $('#1').on("click", function() {
               socket.emit('1', ' Number 1 clicked  ' );
             });
  $('#2').on("click", function() {
              socket.emit('2', ' Number 2 clicked  ' );
             });
 $('#3').on("click", function() {
               socket.emit('3', ' Number 3 clicked  ' );
            });
 $('#4').on("click", function() {
              socket.emit('4', ' Number 4 clicked  ' );
                                   });
  $('#5').on("click", function() {
               socket.emit('5', ' Number 5 clicked  ' );
             });
  $('#6').on("click", function() {
              socket.emit('6', ' Number 6 clicked  ' );
             });
  $('#7').on("click", function() {
             socket.emit('7', ' Number 7 clicked  ' );
              });
  $('#8').on("click", function() {
            socket.emit('8', ' Number 8 clicked  ' );
               });
 $('#9').on("click", function() {
            socket.emit('9', ' Number 9 clicked  ' );
               });
 $('#0').on("click", function() {
            socket.emit('0', ' Number 0 clicked  ' );
               });
     </script>


</body>
</html>
Arduino code for IR Arduino
#include <IRremote.h>

  const int LED_BUILTIN = 13;
String serial_string;


IRsend irsend;

  void setup() {

 Serial.begin(115200);  // open serial connection to USB Serial port (connected to your computer)
    Serial1.begin(57600);  // open internal serial connection to MT7688AN

  // init LEDS
  pinMode(LED_BUILTIN,OUTPUT);

}

void loop() {

 if (Serial1.available() > 0) {
  serial_string = Serial1.readString();
  // put your main code here, to run repeatedly:

// Toshiba TV code
if(serial_string=="TVPwr")
{    irsend.sendNEC(0x2FD48B7, 32);// channel up
 Serial1.flush();

   }
if(serial_string=="TVchUP")
{    irsend.sendNEC(0x2FDD827, 32);// channel up
 Serial1.flush();

   }
  else if(serial_string=="TVchDW")
   {
      irsend.sendNEC(0x2FDF807, 32);
       Serial1.flush();

   }
   else if(serial_string=="TVvUP")
   {
      irsend.sendNEC(0x2FD58A7, 32);
       Serial1.flush();
 }
 else if(serial_string=="TVvDW")
   {
      irsend.sendNEC(0x2FD7887, 32);
       Serial1.flush();

}


// Set Top Box code

if(serial_string=="STBPwr")
{    irsend.sendRC6(0xC0000C, 24);// channel up
 Serial1.flush();

   }
   if(serial_string=="STBchUP")
{    irsend.sendRC6(0xC00020, 24);// channel up
 Serial1.flush();

   }
  else if(serial_string=="STBchDW")
   {
      irsend.sendRC6(0xC00021, 24);
       Serial1.flush();

   }
   else if(serial_string=="STBvUP")
   {
      irsend.sendRC6(0xC00010, 24);
       Serial1.flush();
 }
 else if(serial_string=="STBvDW")
   {
      irsend.sendRC6(0xC00011, 24);
       Serial1.flush();

}
else if(serial_string=="1")
   {
      irsend.sendRC6(0xC00001, 24);
       Serial1.flush();

}
else if(serial_string=="2")
   {
      irsend.sendRC6(0xC00002, 24);
       Serial1.flush();

}else if(serial_string=="3")
   {
      irsend.sendRC6(0xC00003, 24);
       Serial1.flush();

}else if(serial_string=="4")
   {
      irsend.sendRC6(0xC00004, 24);
       Serial1.flush();

}else if(serial_string=="5")
   {
      irsend.sendRC6(0xC00005, 24);
       Serial1.flush();

}else if(serial_string=="6")
   {
      irsend.sendRC6(0xC00006, 24);
       Serial1.flush();

}else if(serial_string=="7")
   {
      irsend.sendRC6(0xC00007, 24);
       Serial1.flush();

}else if(serial_string=="8")
   {
      irsend.sendRC6(0xC00008, 24);
       Serial1.flush();

}
else if(serial_string=="9")
   {
      irsend.sendRC6(0xC00009, 24);
       Serial1.flush();

}else if(serial_string=="0")
   {
      irsend.sendRC6(0xC00000, 24);
       Serial1.flush();

}
 }
}

Credits

Replications

Did you replicate this project? Share it!

I made one

Love this project? Think it could be improved? Tell us what you think!

Give feedback

Comments

Similar projects you might like

Linkit One: Blowing an LED
Intermediate
  • 954
  • 27

Full instructions

In this tutorial I Will show you how to turn on an led with your mouth. The Led will turn on when start to blow the sound sensor.

Linkit One: Water Level Indicator
Intermediate
  • 1,063
  • 26

In this project we will learn on making water level indicator using linkit one. This project could help you save water more efficiently.

Understanding LinkIt ONE ScanNetworks
Intermediate
  • 899
  • 18

Protip

I found a sketch called "ScanNetworks" in the LWiFi library and decided to give it a try.

Vertical Hydroponic Farm
Intermediate
  • 30,743
  • 197

Work in progress

IoT Enabled Hydroponic Farm

Creating the Tweeting Viking Hat
Intermediate
  • 1,001
  • 20

Full instructions

I made a tweeting viking hat to show off that anyone could hear iBeacons.

Home Smart Home
Intermediate
  • 38,998
  • 152

Full instructions

Smart home system using MediaTek Linkit, Xbee, Arduino, Orange PI and Azure

Add projectSign up / Login
