Swipe Card Lock

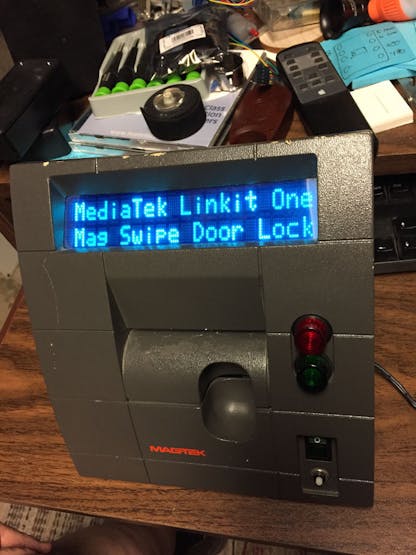

I found this Magtek card reader in a surplus shop and thought it would look great on my shop door.

IntermediateFull instructions provided8 hours279
Swipe Card Lock

Things used in this project

Hardware components

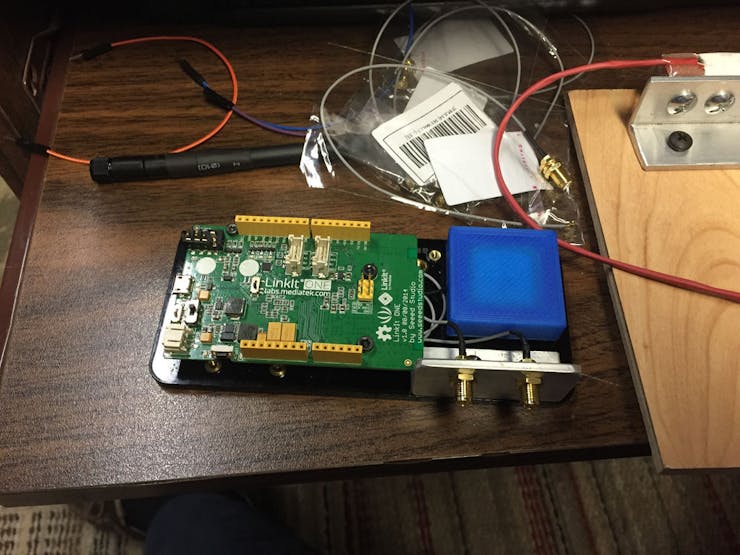

LinkIt ONE
MediaTek Labs LinkIt ONE
×1

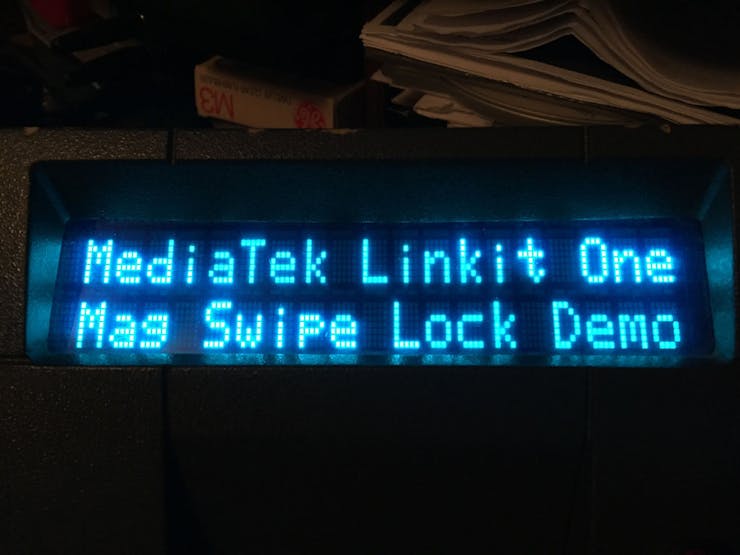

Futaba 20x2 VFD
×1

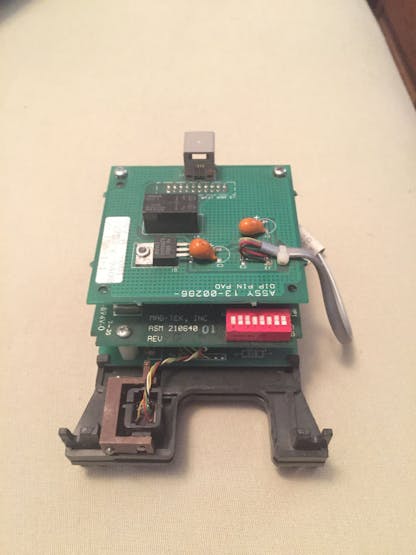

Magtek Serial Card Reader
×1

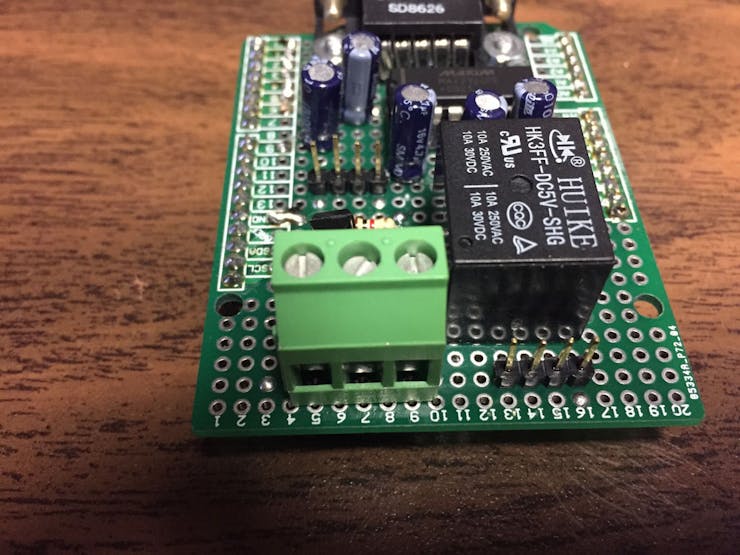

Relay (generic)
×1
KSP-13 Darlington
×1
White LED's
×2

Story

Read more

Schematics

Schematic

F14mf5wiidjcsxp

Code

Arduino Sketch

Arduino
//****************************************************************
//*  Name    : Mag Swipe Door Lock Demo                          *
//*  Author  : Robert Joseph Korn                                *
//*  Notice  : Copyright (c) 2015 Open Valley Consulting Corp    *
//*  Date    : 12/18/15                                          *
//*  Version : 1.1                                               *
//*          :                                                   *
//*  Notes   :  Control Codes                                    *
//*          :  07 - Initialize Display                          *
//*          :  12 - Clear Display(must be followed by cr lf)    *
//*          :  22 - Signal Off                                  *
//*          :  23 - Signal Red                                  *
//*          :  25 - Signal Green                                *
//*          :                                                   *
//*          :  States                                           *
//*          :  0 - Waiting for Swipe                            *
//*          :  1 - Parsing Track 1                              *
//*          :  2 - Parsing Track 2                              *
//*          :  3 - Processing Swipe                             *
//*          :                                                   *
//*          :                                                   *
//****************************************************************

int SER = 0;
int state = 0;
int numlen=0;
int namlen=0;
int o=0;
char nam[255];
char num[55];
int strike = 6;
String str = "";

void setup() {

  pinMode(strike, OUTPUT);
  digitalWrite(strike, LOW);

  Serial1.begin(9600);
  Serial1.write(22);
  Serial1.write(4);
  Serial1.write(12);
  Serial1.println();
  Serial1.write(12);
  Serial1.println(" MediaTek Linkit One");
  Serial1.write(14);
  Serial1.println(" Mag Swipe Lock Demo");

}

void loop() {

          if( state == 3 )
          {
           str = "";
           for(int o=0;o<numlen-1;o++)
             {
                  str += char(num[o]);
             }

            if( str == "0123456789" )
            {
              Serial1.write(12);
              Serial1.println("      Welcome       ");
              Serial1.write(14);

            for(int o=0;o<namlen-1;o++)
             {
               Serial1.print(char(nam[o]));
             }

             Serial1.println("");

             delay(2500);
             Serial1.write(25);
             digitalWrite(strike, HIGH);
             Serial1.write(12);
             Serial1.println("   Door is Unlocked");
             Serial1.write(14);
             Serial1.println("     Please Enter");

             delay(4500);
             Serial1.write(22);
             digitalWrite(strike, LOW);
             Serial1.write(12);
             Serial1.println(" MediaTek Linkit One");
             Serial1.write(14);
             Serial1.println(" Mag Swipe Lock Demo");
          }else{
             Serial1.write(23);
             Serial1.write(12);
             Serial1.println("  Access is Denied");
             Serial1.write(14);
             Serial1.println("   Please Go Away");

             delay(4500);
             Serial1.write(22);
             digitalWrite(strike, LOW);
             Serial1.write(12);
             Serial1.println(" MediaTek Linkit One");
             Serial1.write(14);
             Serial1.println(" Mag Swipe Lock Demo");
          }
            numlen=0;
            namlen=0;
            state=0;
          }

  if (Serial1.available() > 0) {
      SER = Serial1.read();

  switch(state)
  {
    case 0:if (SER==0x3B)
               {
                 state=1;
               }
           if (SER==0x25)
               {
                 state=2;
               }break;

    case 1:num[numlen]=SER;
            numlen++;
              if (SER==0x3F)
               {
                 state=3;
               }break;

    case 2:nam[namlen]=SER;
            namlen++;
              if (SER==0x3F)
               {
                 state=0;
               }break;

     default:break;
  }

  }

}

SwipeLockControl.pbp

Plain text

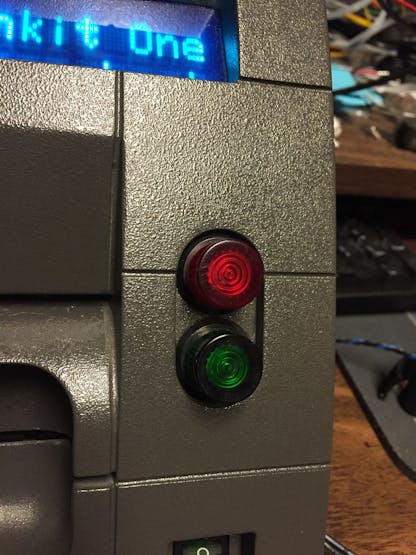

You could just use the Linkit or Arduino GPIO pins but I have many other devices that use this protocol
'****************************************************************
'*  Name    : Swipe_Door_Lock.BAS                                 *
'*  Author  : Robert Joseph Korn                                *
'*  Notice  : Copyright (c) 2015 Open Valley Consulting Corp    *
'*  Date    : 12/15/2015                                         *
'*  Version : 1.0                                               *
'*  Notes   :                                                   *
'*          :                                                   *
'****************************************************************

DEFINE  OSC     10

DEFINE HSER_RCSTA 90h
DEFINE HSER_TXSTA 20h
DEFINE HSER_BAUD 9600
DEFINE HSER_CLROERR 1

x       var     word

        ADCON1 = $7f

char    var     BYTE

red     VAR     PORTB.7
yellow  VAR     PORTB.6
green   VAR     PORTB.5

        PORTB = 0
        TRISB = $7e

        low red
        low yellow
        low green

        on interrupt goto serial

        INTCON = %11000000
        PIE1 = %00100000

         goto    main


' interrupt service routine
        disable
serial:

        hserin 0, endisr, [char]

        if  char = $16 then
            low red
            low yellow
            low green
        endif

        if  char = $17 then
            high red
            low yellow
            low green
        endif

        if  char = $18 then
            low red
            high yellow
            low green
        endif

        if  char = $19 then
            low red
            low yellow
            high green
        endif

endisr:
        resume
        enable
        ' end of ISR

main:
       pause 500
       goto main
