Linkit One IoT: Connected to Thingspeak

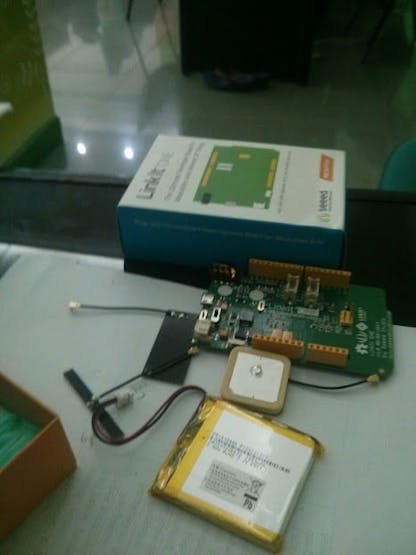

Linkit one is an Arduino compatible board made from seeed studio and based on mediatek ARM chip.

Full instructions provided789
Linkit One IoT: Connected to Thingspeak

Things used in this project

Story

Read more

Code

Code snippet #1

Plain text
/*  WiFi Web Server A simple web server that a repeated counter Change the macro WIFI_AP, WIFI_PASSWORD and WIFI_AUTH accordingly. created 13 July 2010
 by dlf (Metodo2 srl)
 modified 31 May 2012
 by Tom Igoe
 modified 20 Aug 2014
 by MediaTek Inc.Thingspeak codeCreated: October 17, 2011 by Hans Scharler (http://www.nothans.com)
 */
#include <LTask.h>
#include <LWiFi.h>
#include <LWiFiServer.h>#include <LWiFiClient.h>#define WIFI_AP "YourWiFiName"
#define WIFI_PASSWORD "WiFi Password"
#define WIFI_AUTH LWIFI_WPA  // choose from LWIFI_OPEN, LWIFI_WPA, or LWIFI_WEP according to your WiFi AP configuration// ThingSpeak Settings
char thingSpeakAddress[] = "api.thingspeak.com";
String writeAPIKey = "Your API Key";
const int updateThingSpeakInterval = 16 * 1000;      // Time interval in milliseconds to update ThingSpeak (number of seconds * 1000 = interval)long lastConnectionTime = 0;
boolean lastConnected = false;
int failedCounter = 0;LWiFiClient client; void setup()
{
  LWiFi.begin();
  Serial.begin(115200);  // keep retrying until connected to AP
  Serial.println("Connecting to AP");
  while (0 == LWiFi.connect(WIFI_AP, LWiFiLoginInfo(WIFI_AUTH, WIFI_PASSWORD)))
  {
    delay(1000);
  }  startWifi();
}void loop()
{
  // Read value from Analog Input Pin 0
  String analogValue0 = String(analogRead(A0), DEC);

  // Print Update Response to Serial Monitor
  if (client.available())
  {
    char c = client.read();
    Serial.print(c);
  }  // Disconnect from ThingSpeak
  if (!client.connected() && lastConnected)
  {
    Serial.println("...disconnected");
    Serial.println();

    client.stop();
  }

  // Update ThingSpeak
  if(!client.connected() && (millis() - lastConnectionTime > updateThingSpeakInterval))
  {
    updateThingSpeak("field1="+analogValue0);
  }

  // Check if Arduino Ethernet needs to be restarted
  if (failedCounter > 3 ) {startWifi();}

  lastConnected = client.connected();
}void updateThingSpeak(String tsData)
{
  if (client.connect(thingSpeakAddress, 80))
  {
    client.print("POST /update HTTP/1.1\n");
    client.print("Host: api.thingspeak.com\n");
    client.print("Connection: close\n");
    client.print("X-THINGSPEAKAPIKEY: "+writeAPIKey+"\n");
    client.print("Content-Type: application/x-www-form-urlencoded\n");
    client.print("Content-Length: ");
    client.print(tsData.length());
    client.print("\n\n");    client.print(tsData);

    lastConnectionTime = millis();

    if (client.connected())
    {

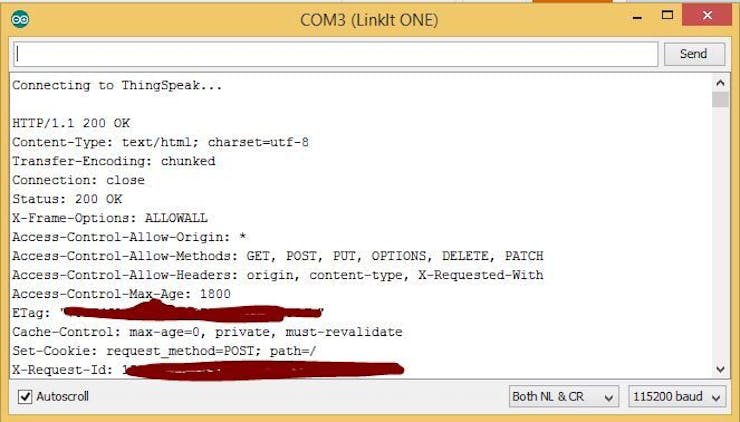

      Serial.println("Connecting to ThingSpeak...");
      Serial.println();

      failedCounter = 0;
    }
    else
    {
      failedCounter++;

      Serial.println("Connection to ThingSpeak failed ("+String(failedCounter, DEC)+")");
      Serial.println();
    }

  }
  else
  {
    failedCounter++;

    Serial.println("Connection to ThingSpeak Failed ("+String(failedCounter, DEC)+")");
    Serial.println();

    lastConnectionTime = millis();
  }
}void startWifi()
{

  client.stop();  Serial.println("Connecting Arduino to network...");
  Serial.println();    delay(1000);

}
