Things used in this project

Hardware components:
102110017%206

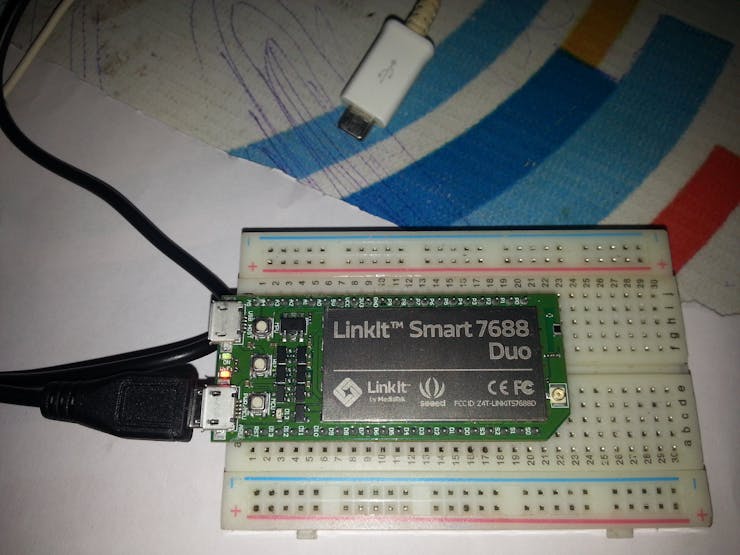

MediaTek Labs LinkIt Smart 7688 Duo
×1
386 00

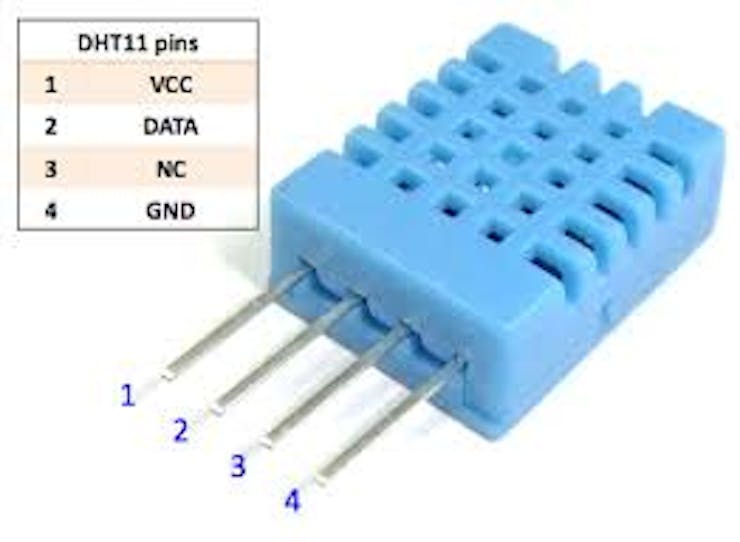

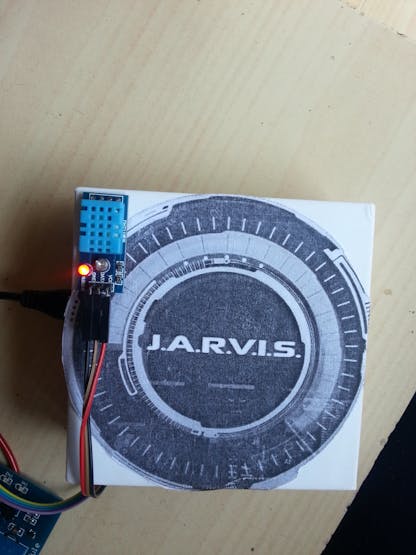

DHT11 Temperature & Humidity Sensor
×1
11026 02
Jumper wires (generic)
×1

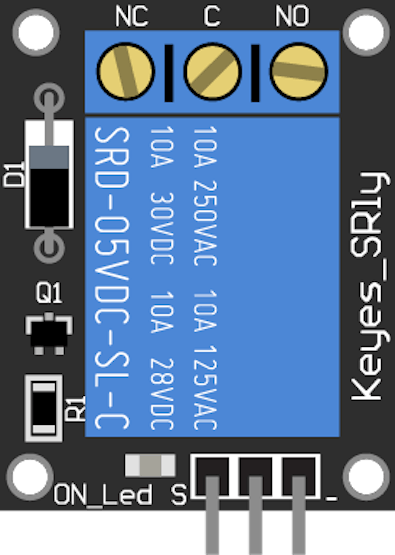

4 Channel DC 5V Relay Module
×1
Software apps and online services:
Ide web
Arduino IDE
PuTTY
WinSCP

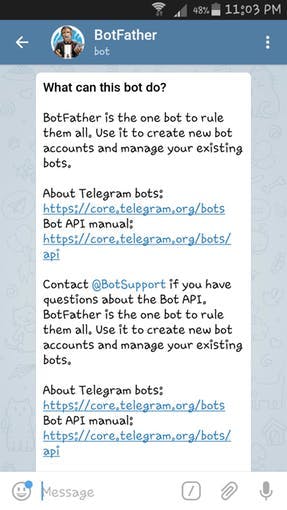

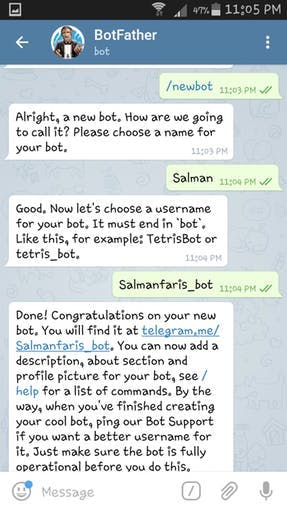

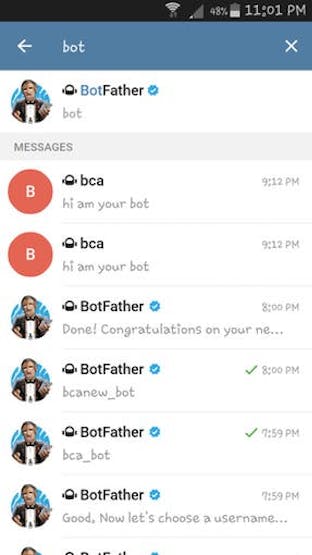

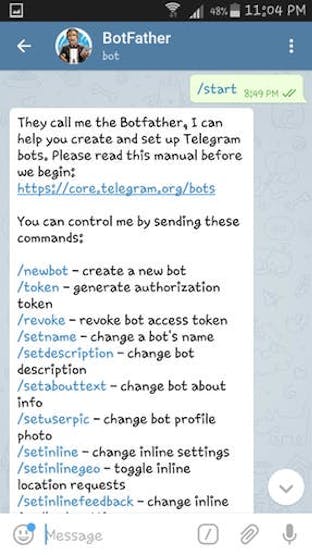

Telegram Bot

Schematics

Wiring
Wire vzi5i1ilcr

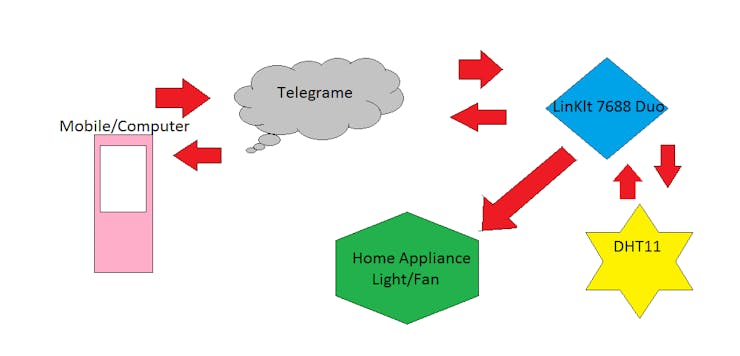

Flowchart
Layout vxyyzyttun

Code

Python CodePython
#coder :- Salman Faris
import sys
import mraa
import time
import random
import datetime
import telepot
import serial



s= None

def setup():
    global s
    s = serial.Serial("/dev/ttyS0", 57600)




def handle(msg):
    chat_id = msg['chat']['id']
    command = msg['text']

    print 'Got command: %s' % command

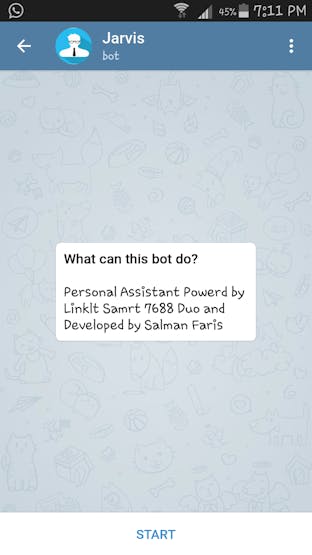

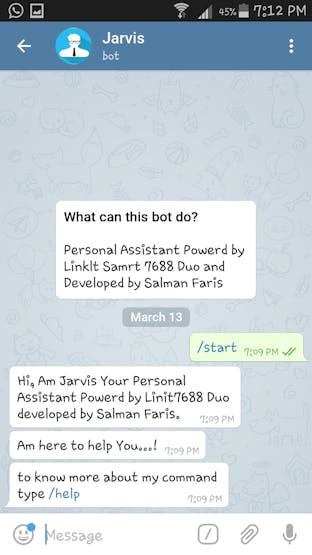

    if command =='/start':
       bot.sendMessage(chat_id,"Hi, Am Jarvis Your Personal Assistant Powerd by Linit7688 Duo developed by Salman Faris. ")
       bot.sendMessage(chat_id,"Am here to help You...! ")
       bot.sendMessage(chat_id,"to know more about my command type /help")

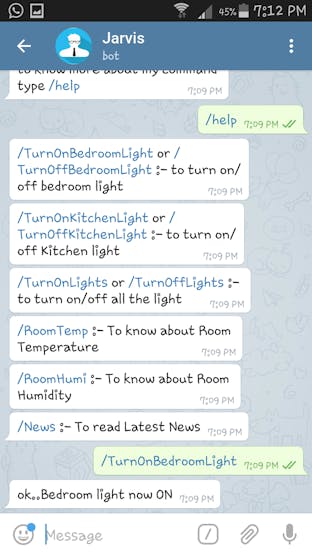

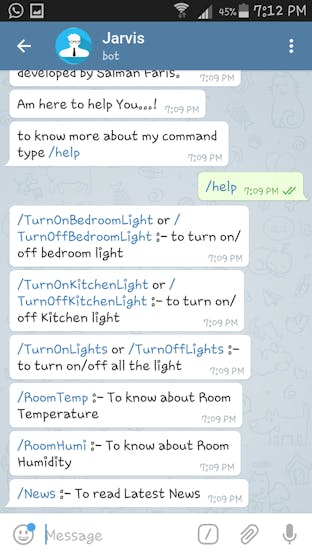

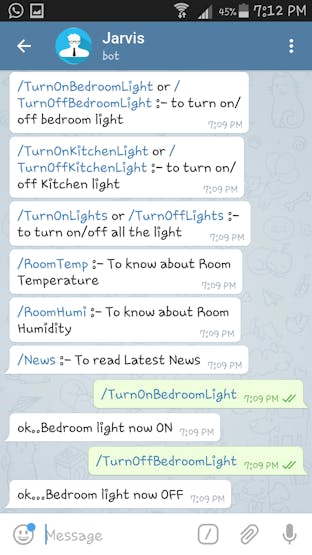

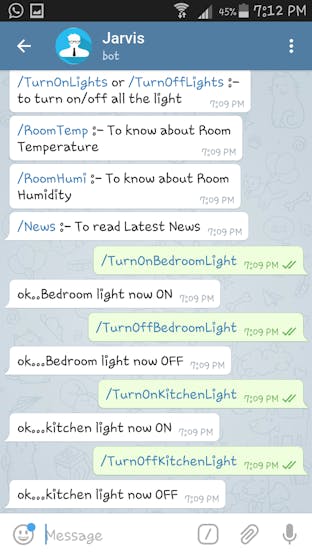

    elif command == '/help':
        bot.sendMessage(chat_id,"/TurnOnBedroomLight or /TurnOffBedroomLight :- to turn on/off bedroom light")
        bot.sendMessage(chat_id,"/TurnOnKitchenLight or /TurnOffKitchenLight :- to turn on/off Kitchen light")
        bot.sendMessage(chat_id,"/TurnOnLights or /TurnOffLights :- to turn on/off all the light")
        bot.sendMessage(chat_id,"/RoomTemp :- To know about Room Temperature ")
        bot.sendMessage(chat_id,"/RoomHumi :- To know about Room Humidity ")
        bot.sendMessage(chat_id,"/News :- To read Latest News ")
        s.write("1")
    elif command == '/TurnOnBedroomLight':
        bot.sendMessage(chat_id,"ok..Bedroom light now ON")
        s.write("1")
    elif command =='/TurnOffBedroomLight':
         bot.sendMessage(chat_id,"ok...Bedroom light now OFF")
         s.write("0")

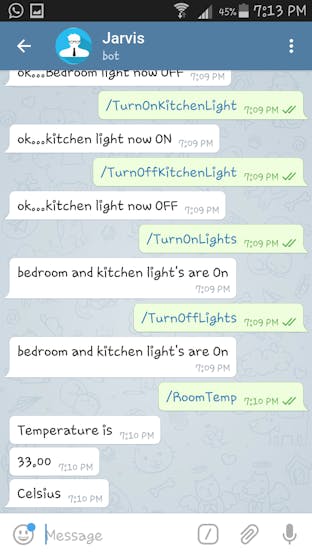

    elif command == '/TurnOnKitchenLight':
         bot.sendMessage(chat_id,"ok...kitchen light now ON")
         s.write("3")
    elif command == '/TurnOffKitchenLight':
         bot.sendMessage(chat_id,"ok...kitchen light now OFF")
         s.write("2")
    elif command == '/TurnOnLights':
         bot.sendMessage(chat_id,"bedroom and kitchen light's are On")
         s.write("1")
         s.write("3")
    elif command == '/TurnOffLights':
         bot.sendMessage(chat_id,"bedroom and kitchen light's are On")
         s.write("0")
         s.write("2")

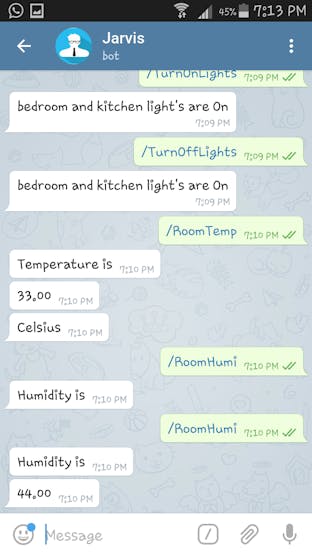

    elif command == '/RoomTemp':
         bot.sendMessage(chat_id,"Temperature is")
         s.write("5")
         a = s.read(5)
         bot.sendMessage(chat_id,a)
         bot.sendMessage(chat_id,"Celsius")
    elif command == '/RoomHumi':
         bot.sendMessage(chat_id,"Humidity is ")
         s.write("4")
         a = s.read(5)
         bot.sendMessage(chat_id,a)

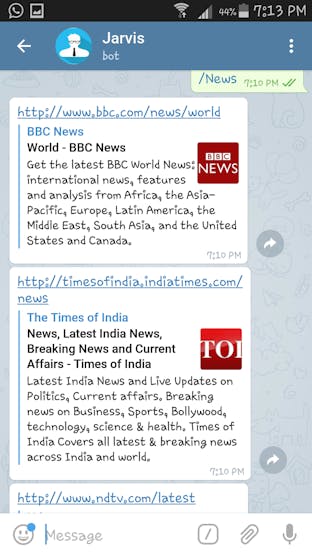

    elif command == '/News':
         bot.sendMessage(chat_id,"http://www.bbc.com/news/world")
         bot.sendMessage(chat_id,"http://timesofindia.indiatimes.com/news")
         bot.sendMessage(chat_id,"http://www.ndtv.com/latest")

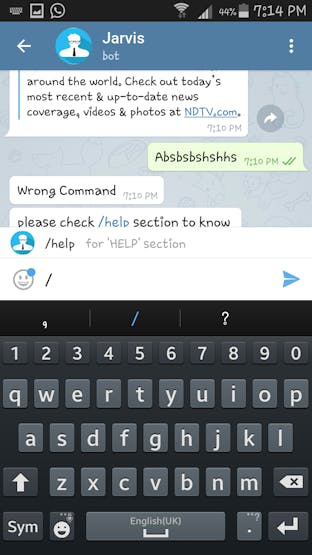

    else:
        bot.sendMessage(chat_id,"Wrong Command")
        bot.sendMessage(chat_id,"please check /help section to know more about Command's")

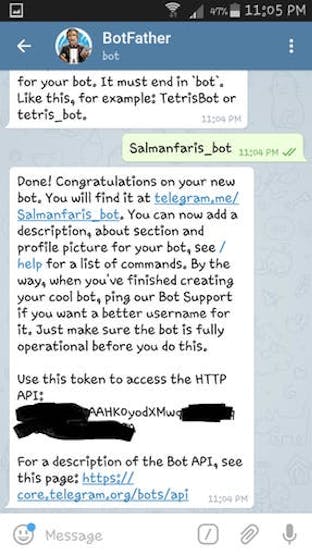

bot = telepot.Bot('bot token')
bot.message_loop(handle)
print 'I am listening...'

while True:
    setup()
Arduino CodeC/C++
#include <DHT.h>

#define DHTPIN A1  // DHTT pin connected to A1
#define DHTTYPE DHT11   // DHT 22  (AM2302)
DHT dht(DHTPIN, DHTTYPE);  // Initialize DHT sensor


int chk;
float hum;  //Stores humidity value
float temp; //Stores temperature value

void setup() {

          dht.begin();  //begin the DHTT

          Serial.begin(115200);  // open serial connection to USB Serial
                                 //port(connected to your computer)
          Serial1.begin(57600);  // open internal serial connection to
                                 //MT7688

          pinMode(13, OUTPUT); // Bedroom light
          pinMode(12,OUTPUT);  // kitchen light

      }
      void loop() {
         hum = dht.readHumidity();   // read humdity
         temp= dht.readTemperature();  //read temperature

            int c = Serial1.read();      // read from MT7688
            if (c != -1) {
                  switch(c) {
                        case '0':                // turn off D13 when receiving "0"
                        digitalWrite(13, 0);
                        break;
                        case '1':                // turn on D13 when receiving "1"
                        digitalWrite(13, 1);
                        break;
                        case '2':                // turn off D12 when receiving "1"
                        digitalWrite(12,0);
                        break;
                        case '3':                // turn on D12 when receiving "1"
                        digitalWrite(12,1);
                        break;
                        case '4':               // print temperature when receiving "4"
                        Serial1.print(hum);
                        break;
                        case '5':               //print humidity when receiving "5"
                        Serial1.print(temp);
                        break;




                  }
            }
      }

Credits

Dsc05679 xxk38knz8i
Salman Faris

Learning By Doing.
