Smart Irrigation System

Continuously senses the moisture in the soil using a soil moisture sensor and irrigates when the level is low.

EasyFull instructions provided5 hours1,429
Smart Irrigation System

Things used in this project

Hardware components

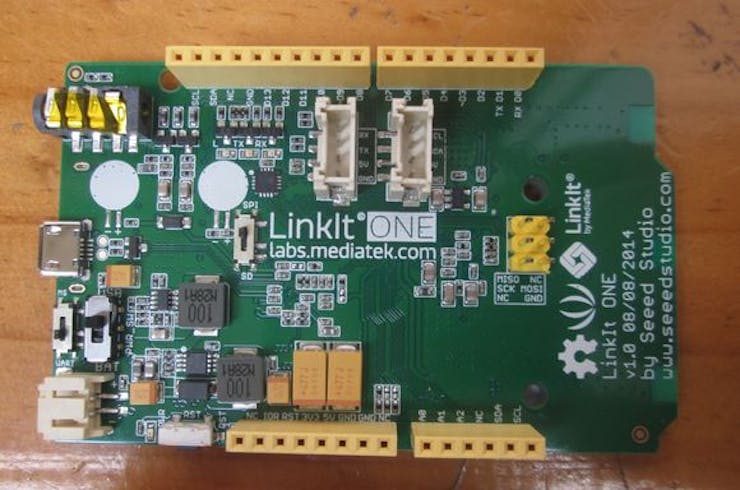

LinkIt ONE
MediaTek Labs LinkIt ONE
×1
moisture sensor
×1

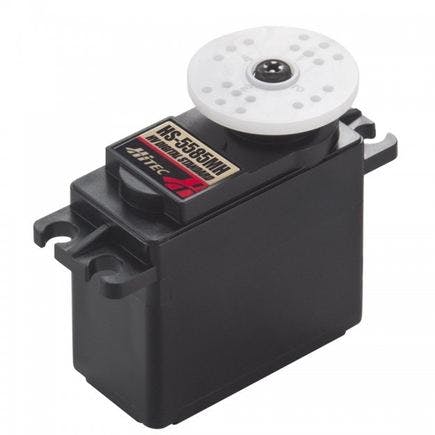

servo motor
×1

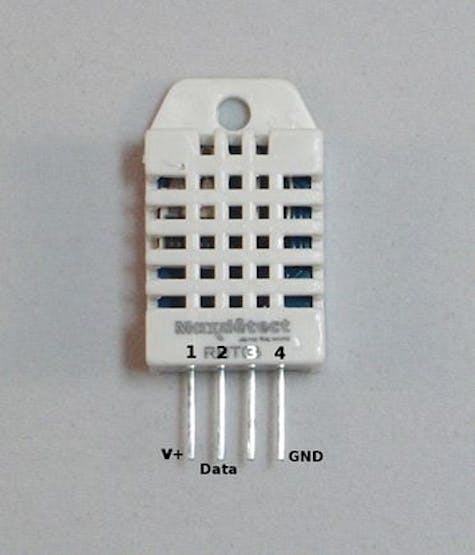

DHT22 Temperature Sensor
DHT22 Temperature Sensor
×1

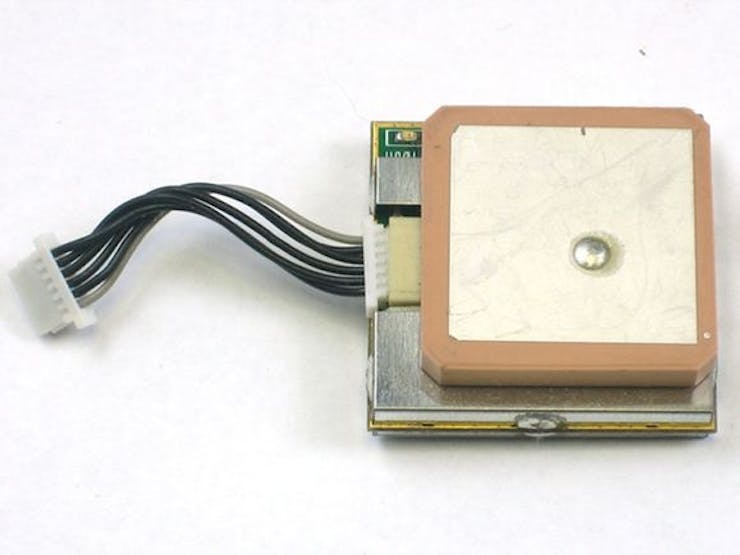

GPS Module
×1

Hand tools and fabrication machines

MediaTek cloud Sandbox

Story

Read more

Schematics

Pin Connections

Connect the humidity sensor to any digital pin, here it is connected to pin 2. Servo motor can also be connected to any digital pin, here it is connected to pin 9, using capacitors the range of raw moisture can be varied. Configure A0 as input pin (reading the analog value) for moisture sensor and digital pin 7 as output (display the digital output) . Connect the GPS module in the socket separately provided for GPS antenna. Ground all the negative pins.
Img 20151009 095010

Code

Linkit Code

C/C++
Updates the soil moisture level on the MediaTek cloud Sandbox, motor acts accordingly based on the moisture level. Switch in cloud can override to switch ON/OFF the motor.
/*
 * SMART IRRIGATION
 *
 * MediaTek Linkit based soil moisture monitoring and irrigation
 *
 * Version 1.1 February, 2016
 * Developed by Green Robot Machinery Pvt. Ltd., Bangalore.
 *
 */


//headers for interfacing modules
#include <LGPS.h>  // for GPS module
#include <DHT.h>  // for Temperature and Humidity sensor
#include <HttpClient.h>
#include <LTask.h>
#include <LWiFi.h>
#include <LWiFiClient.h>
#include<Servo.h>
#include <SPI.h>
#include <LDateTime.h>

//WiFi configuration
#define WIFI_AP "grobomac-wifi"
#define WIFI_PASSWORD "grobomac"
#define WIFI_AUTH LWIFI_WPA


#define per 50
#define per1 3
#define DEVICEID "DJ6nvDvr" // Input your deviceId
#define DEVICEKEY "yz5SP0WksLWM76aD" // Input your deviceKey
#define SITE_URL "api.mediatek.com"

#define DHTPIN 2 // ‘Temperature and humidity’ sensor to pin2
#define DHTTYPE DHT22
DHT dht(DHTPIN,DHTTYPE);

gpsSentenceInfoStruct info; // getting GPS coordinates
char buff[256];

int servoPin = 9; //the servo motor is connected to pin9
Servo servo;
int angle = 0; //servo angle
String dataToUpload;
LWiFiClient c;

unsigned int rtc;
unsigned int lrtc;
unsigned int rtc1;
unsigned int lrtc1;
char port[4]={0};
char connection_info[21]={0};
char ip[21]={0};
int portnum;
int val = 0;
String tcpdata = String(DEVICEID) + "," + String(DEVICEKEY) + ",0";

String upload_led;
String tcpcmd_led_on = "LED_Control,1";
String tcpcmd_led_off = "LED_Control,0";
String upload_weather;
String upload_GPS;
LWiFiClient c2;
HttpClient http(c2);


// initialise variables for GPS coordinates
  double latitude;
  double longitude;
  double altitude=0.0;


  // functions to run the GPS modules
  static unsigned char getComma(unsigned char num,const char *str)
{
  unsigned char i,j = 0;
  int len=strlen(str);
  for(i = 0;i < len;i ++)
  {
     if(str[i] == ',')
      j++;
     if(j == num)
      return i + 1;
  }
  return 0;
}

static double getDoubleNumber(const char *s)
{
  char buf[10];
  unsigned char i;
  double rev;

  i=getComma(1, s);
  i = i - 1;
  strncpy(buf, s, i);
  buf[i] = 0;
  rev=atof(buf);
  return rev;
}

static double getIntNumber(const char *s)
{
  char buf[10];
  unsigned char i;
  double rev;

  i=getComma(1, s);
  i = i - 1;
  strncpy(buf, s, i);
  buf[i] = 0;
  rev=atoi(buf);
  return rev;
}

void parseGPGGA(const char* GPGGAstr)
{
  /* Refer to http://www.gpsinformation.org/dale/nmea.htm#GGA
   * Sample data: $GPGGA,123519,4807.038,N,01131.000,E,1,08,0.9,545.4,M,46.9,M,,*47
   * Where:
   *  GGA          Global Positioning System Fix Data
   *  123519       Fix taken at 12:35:19 UTC
   *  4807.038,N   Latitude 48 deg 07.038' N
   *  01131.000,E  Longitude 11 deg 31.000' E
   *  1            Fix quality: 0 = invalid
   *                            1 = GPS fix (SPS)
   *                            2 = DGPS fix
   *                            3 = PPS fix
   *                            4 = Real Time Kinematic
   *                            5 = Float RTK
   *                            6 = estimated (dead reckoning) (2.3 feature)
   *                            7 = Manual input mode
   *                            8 = Simulation mode
   *  08           Number of satellites being tracked
   *  0.9          Horizontal dilution of position
   *  545.4,M      Altitude, Meters, above mean sea level
   *  46.9,M       Height of geoid (mean sea level) above WGS84
   *                   ellipsoid
   *  (empty field) time in seconds since last DGPS update
   *  (empty field) DGPS station ID number
   *  *47          the checksum data, always begins with *
   */

  int tmp, hour, minute, second, num ;
  if(GPGGAstr[0] == '$')
  {
    tmp = getComma(1, GPGGAstr);
    hour     = (GPGGAstr[tmp + 0] - '0') * 10 + (GPGGAstr[tmp + 1] - '0');
    minute   = (GPGGAstr[tmp + 2] - '0') * 10 + (GPGGAstr[tmp + 3] - '0');
    second    = (GPGGAstr[tmp + 4] - '0') * 10 + (GPGGAstr[tmp + 5] - '0');

    sprintf(buff, "UTC timer %2d-%2d-%2d", hour, minute, second);
    Serial.println(buff);

    tmp = getComma(2, GPGGAstr);
    latitude = getDoubleNumber(&GPGGAstr[tmp]);
    tmp = getComma(4, GPGGAstr);
    longitude = getDoubleNumber(&GPGGAstr[tmp]);
    sprintf(buff, "latitude = %10.4f, longitude = %10.4f", latitude, longitude);
    Serial.println(buff);

    tmp = getComma(7, GPGGAstr);
    num = getIntNumber(&GPGGAstr[tmp]);
    sprintf(buff, "satellites number = %d", num);
    Serial.println(buff);
  }
  else
  {
    Serial.println("Not get data");
  }
}





void setup()
{
  servo.attach(9);
  pinMode(A0,INPUT); //make A0 input to read the moisture data
  pinMode(7, OUTPUT); ////make pin7 to send out the input moisture data
  LTask.begin();
  LWiFi.begin();
  Serial.begin(115200);
  dht.begin();
  Serial.println("Temperature sensor on...");
  LGPS.powerOn();
  Serial.println("LGPS Power on, and waiting ...");
  delay(3000);
  while(!Serial) delay(1000); /* comment out this line when Serial is not present, ie. run this demo without connect to PC */
  Serial.println("Connecting to AP");
  while (0 == LWiFi.connect(WIFI_AP, LWiFiLoginInfo(WIFI_AUTH, WIFI_PASSWORD)))
  {
    delay(1000);
  }

  Serial.println("calling connection");

  while (!c2.connect(SITE_URL, 80))
  {
    Serial.println("Re-Connecting to WebSite");
    delay(1000);
  }
  delay(100);

  getconnectInfo();
  connectTCP();
uploadstatusweather();

}

void getconnectInfo(){
  //calling RESTful API to get TCP socket connection
  c2.print("GET /mcs/v2/devices/");
  c2.print(DEVICEID);
  c2.println("/connections.csv HTTP/1.1");
  c2.print("Host: ");
  c2.println(SITE_URL);
  c2.print("deviceKey: ");
  c2.println(DEVICEKEY);
  c2.println("Connection: close");
  c2.println();

  delay(500);

  int errorcount = 0;
  while (!c2.available())
  {
    Serial.println("waiting HTTP response: ");
    Serial.println(errorcount);
    errorcount += 1;
    if (errorcount > 10) {
      c2.stop();
      return;
    }
    delay(100);
  }
  int err = http.skipResponseHeaders();

  int bodyLen = http.contentLength();
  Serial.print("Content length is: ");
  Serial.println(bodyLen);
  Serial.println();
  char c;
  int ipcount = 0;
  int count = 0;
  int separater = 0;
  while (c2)
  {
    int v = c2.read();
    if (v != -1)
    {
      c = v;
      Serial.print(c);
      connection_info[ipcount]=c;
      if(c==',')
      separater=ipcount;
      ipcount++;
    }
    else
    {
      Serial.println("no more content, disconnect");
      c2.stop();

    }

  }
  Serial.print("The connection info: ");
  Serial.println(connection_info);
  int i;
  for(i=0;i<separater;i++)
  {  ip[i]=connection_info[i];
  }
  int j=0;
  separater++;
  for(i=separater;i<21 && j<5;i++)
  {  port[j]=connection_info[i];
     j++;
  }
  Serial.println("The TCP Socket connection instructions:");
  Serial.print("IP: ");
  Serial.println(ip);
  Serial.print("Port: ");
  Serial.println(port);
  portnum = atoi (port);
  Serial.println(portnum);

} //getconnectInfo

void uploadstatus(){
  //calling RESTful API to upload datapoint to MCS to report LED status
  Serial.println("calling connection");
  LWiFiClient c2;

  while (!c2.connect(SITE_URL, 80))
  {
    Serial.println("Re-Connecting to WebSite");
    delay(1000);
  }
  delay(100);
  if(digitalRead(7)==1)
  upload_led = "LED_Display,,1";
  else
  upload_led = "LED_Display,,0";
  int thislength = upload_led.length();
  HttpClient http(c2);
  c2.print("POST /mcs/v2/devices/");
  c2.print(DEVICEID);
  c2.println("/datapoints.csv HTTP/1.1");
  c2.print("Host: ");
  c2.println(SITE_URL);
  c2.print("deviceKey: ");
  c2.println(DEVICEKEY);
  c2.print("Content-Length: ");
  c2.println(thislength);
  c2.println("Content-Type: text/csv");
  c2.println("Connection: close");
  c2.println();
  c2.println(upload_led);

  delay(500);

  int errorcount = 0;
  while (!c2.available())
  {
    Serial.print("waiting HTTP response: ");
    Serial.println(errorcount);
    errorcount += 1;
    if (errorcount > 10) {
      c2.stop();
      return;
    }
    delay(100);
  }
  int err = http.skipResponseHeaders();

  int bodyLen = http.contentLength();
  Serial.print("Content length is: ");
  Serial.println(bodyLen);
  Serial.println();
  while (c2)
  {
    int v = c2.read();
    if (v != -1)
    {
      Serial.print(char(v));
    }
    else
    {
      Serial.println("no more content, disconnect");
      c2.stop();

    }

  }
}



void connectTCP(){
  //establish TCP connection with TCP Server with designate IP and Port
  c.stop();
  Serial.println("Connecting to TCP");
  Serial.println(ip);
  Serial.println(portnum);
  while (0 == c.connect(ip, portnum))
  {
    Serial.println("Re-Connecting to TCP");
    delay(1000);
  }
  Serial.println("send TCP connect");
  c.println(tcpdata);
  c.println();
  Serial.println("waiting TCP response:");
} //connectTCP

void heartBeat(){
  Serial.println("send TCP heartBeat");
  c.println(tcpdata);
  c.println();

} //heartBeat

void loop()
{
  float h,t,temperature;
  dht.readHT(&h,&t);
 temperature=t-17;

 Serial.println("temp:");
 Serial.println(temperature);
  Serial.println("LGPS loop");
  LGPS.getData(&info);
  Serial.println((char*)info.GPGGA);
  parseGPGGA((const char*)info.GPGGA);
  delay(2000);
  val = analogRead(A0);
  Serial.println(val);
  constrain(val,320,590);// sets the upper and lower limit for val
   int mapval= map (val,320,590,100,0); // maps the val values in between 0&100, this is %reading
   uploadsensorValues(String(val),"moisture"); // one sample value
   uploadsensorValues(String(mapval),"moisture_per");
     uploadstatusGPS();
   uploadsensorValues(String(temperature),"temperature");
   delay(1000);
   Serial.println(mapval);

  if( mapval>=100)
    {
      mapval=100;
      Serial.println("100% moist");
     digitalWrite(7,LOW);
    angle = 0;
    servo.write(angle);
    delay(500);

    //motordrive("off");
    }
   else if( mapval>75 && mapval<=99)
    {
      Serial.print(mapval);
     Serial.println("% moist");
     digitalWrite(7,LOW);
    angle = 36;
    servo.write(angle);
    delay(500);

    //motordrive("off");
    }
    else if( mapval>50 && mapval<=75)
    {
      Serial.print(mapval);
     Serial.println("% moist");
     digitalWrite(7,LOW);
    angle = 72;
    servo.write(angle);
    delay(500);
    //motordrive("off");
    }
    else if( mapval>25 && mapval<=50)
    {
      Serial.print(mapval);
     Serial.println("% moist");
     digitalWrite(7,HIGH);
    angle = 108;
    servo.write(angle);
    delay(500);
        //motordrive("off");
    }
    else if( mapval>0 && mapval<=25)
    {
      Serial.print(mapval);
     Serial.println("% moist");
     digitalWrite(7,HIGH);
    angle = 144;
    servo.write(angle);
    delay(500);
    //motordrive("off");
    }
       else if( mapval==0)
    {
      Serial.print(mapval);
     Serial.println("% moist");
     digitalWrite(7,HIGH);
   angle = 180;
    servo.write(angle);
    delay(500);

    //motordrive("off");
    }

  //Check for TCP socket command from MCS Server
  String tcpcmd="";
  while (c.available())
   {
      int v = c.read();
      if (v != -1)
      {
        Serial.print((char)v);
        tcpcmd += (char)v;
        if (tcpcmd.substring(40).equals(tcpcmd_led_on)){
          digitalWrite(7, HIGH);
          angle=180;
          servo.write(angle);
          delay(10000);
          Serial.print("Switch LED ON ");
          tcpcmd="";
        }else if(tcpcmd.substring(40).equals(tcpcmd_led_off)){
          digitalWrite(7, LOW);
          angle=0;
          servo.write(angle);
          delay(10000);
          Serial.print("Switch LED OFF");
          tcpcmd="";
        }
      }

   }


  LDateTime.getRtc(&rtc);
  if ((rtc - lrtc) >= per) {
    heartBeat();
    lrtc = rtc;
  }
  //Check for report datapoint status interval
  LDateTime.getRtc(&rtc1);
  if ((rtc1 - lrtc1) >= per1) {
    uploadstatus();
    lrtc1 = rtc1;
  }

}

void uploadsensorValues(String value,String varid){
  //calling RESTful API to upload datapoint to MCS to report LED status
  Serial.println("calling connection");
  LWiFiClient c2;

  while (!c2.connect(SITE_URL, 80))
  {
    Serial.println("Re-Connecting to WebSite");
    delay(1000);
  }
  delay(100);

  Serial.println("Connected to MCS");

  dataToUpload = "";


  dataToUpload = varid+",,"+value;
  Serial.println(dataToUpload);

  String data = "";
  int dataLength = data.length();

  int thislength = dataToUpload.length();

  HttpClient http(c2);
  c2.print("POST /mcs/v2/devices/");
  c2.print(DEVICEID);
  c2.println("/datapoints.csv HTTP/1.1");
  c2.print("Host: ");
  c2.println(SITE_URL);
  c2.print("deviceKey: ");
  c2.println(DEVICEKEY);
  c2.print("Content-Length: ");
  c2.println(thislength);
  c2.println("Content-Type: text/csv");
  c2.println("Connection: close");
  c2.println();
  c2.println(dataToUpload);
  c2.println();
  c2.println(data);
  c2.println();
  delay(500);

  int errorcount = 0;
  while (!c2.available())
  {
    Serial.print("waiting HTTP response: ");
    Serial.println(errorcount);
    errorcount += 1;
    if (errorcount > 10) {
      c2.stop();
      return;
    }
    delay(100);
  }
  int err = http.skipResponseHeaders();

  int bodyLen = http.contentLength();
  Serial.print("Content length is: ");
  Serial.println(bodyLen);
  Serial.println();
  while (c2)
  {
    int v = c2.read();
    if (v != -1)
    {
      Serial.print(char(v));
    }
    else
    {
      Serial.println("no more content, disconnect");
      c2.stop();

    }

  }
}

void uploadstatusweather(){
  //calling RESTful API to upload datapoint to MCS to report LED status
  Serial.println("calling connection");
  LWiFiClient c2;

  while (!c2.connect(SITE_URL, 80))
  {
    Serial.println("Re-Connecting to WebSite");
    delay(1000);
  }
  int val1 = analogRead(A0);
  Serial.println(val1);
  constrain(val1,320,590);// sets the upper and lower limit for val
   int mapval1= map (val1,320,590,100,0);
  if (val1<10)
  {
    upload_weather="weather,,1";
    Serial.println("HOT weather");
    }
  else if (mapval1<30 && mapval1>=10)
  {
    upload_weather="weather,,2";

    Serial.println("SUNNY weather");
  }
  else if (mapval1<70 && mapval1>=30)
  {
    upload_weather="weather,,3";

    Serial.println("DRIZZLING");
  }
  else if (mapval1<=100 && mapval1>=70)
  {
    upload_weather="weather,,4";
    Serial.println("RAINING");
  }
uploadsensorValues(String(mapval1),"weather");
  int thislength1 = upload_weather.length();
  HttpClient http(c2);
  c2.print("POST /mcs/v2/devices/");
  c2.print(DEVICEID);
  c2.println("/datapoints.csv HTTP/1.1");
  c2.print("Host: ");
  c2.println(SITE_URL);
  c2.print("deviceKey: ");
  c2.println(DEVICEKEY);
  c2.print("Content-Length: ");
  c2.println(thislength1);
  c2.println("Content-Type: text/csv");
  c2.println("Connection: close");
  c2.println();
  c2.println(upload_weather);

  delay(500);

  int errorcount = 0;
  while (!c2.available())
  {
    Serial.print("waiting HTTP response: ");
    Serial.println(errorcount);
    errorcount += 1;
    if (errorcount > 10) {
      c2.stop();
      return;
    }
    delay(100);
  }
  int err = http.skipResponseHeaders();

  int bodyLen = http.contentLength();
  Serial.print("Content length is: ");
  Serial.println(bodyLen);
  Serial.println();
  while (c2)
  {
    int v = c2.read();
    if (v != -1)
    {
      Serial.print(char(v));
    }
    else
    {
      Serial.println("no more content, disconnect");
      c2.stop();

    }

  }
}

void uploadstatusGPS(){
  //calling RESTful API to upload datapoint to MCS to report LED status
  Serial.println("calling connection");
  LWiFiClient c2;
  double lat=latitude/100;
  double longi=longitude/100;


  while (!c2.connect(SITE_URL, 80))
  {
    Serial.println("Re-Connecting to WebSite");
    delay(1000);
  }
  String upload_GPS = "GPS_Location,,"+String(lat)+","+String(longi)+","+String(altitude);
 //String upload_GPS = "GPS_Location,,12.58,77.36,0";
//uploadsensorValues(upload_GPS,"GPS_Location");
  Serial.println(upload_GPS);
  int thislength2 = upload_GPS.length();
  HttpClient http(c2);
  c2.print("POST /mcs/v2/devices/");
  c2.print(DEVICEID);
  c2.println("/datapoints.csv HTTP/1.1");
  c2.print("Host: ");
  c2.println(SITE_URL);
  c2.print("deviceKey: ");
  c2.println(DEVICEKEY);
  c2.print("Content-Length: ");
  c2.println(thislength2);
  c2.println("Content-Type: text/csv");
  c2.println("Connection: close");
  c2.println();
  c2.println(upload_GPS);

  delay(500);

  int errorcount = 0;
  while (!c2.available())
  {
    Serial.print("waiting HTTP response: ");
    Serial.println(errorcount);
    errorcount += 1;
    if (errorcount > 10) {
      c2.stop();
      return;
    }
    delay(100);
  }
  int err = http.skipResponseHeaders();

  int bodyLen = http.contentLength();
  Serial.print("Content length is: ");
  Serial.println(bodyLen);
  Serial.println();
  while (c2)
  {
    int v = c2.read();
    if (v != -1)
    {
      Serial.print(char(v));
    }
    else
    {
      Serial.println("no more content, disconnect");
      c2.stop();

    }

  }
}

Credits

Green Robot Machinery

Green Robot Machinery

7 projects • 31 followers
Green Robot Machinery Private Limited
VIBHAV

VIBHAV

3 projects • 5 followers

Comments

Add projectSign up / Login
